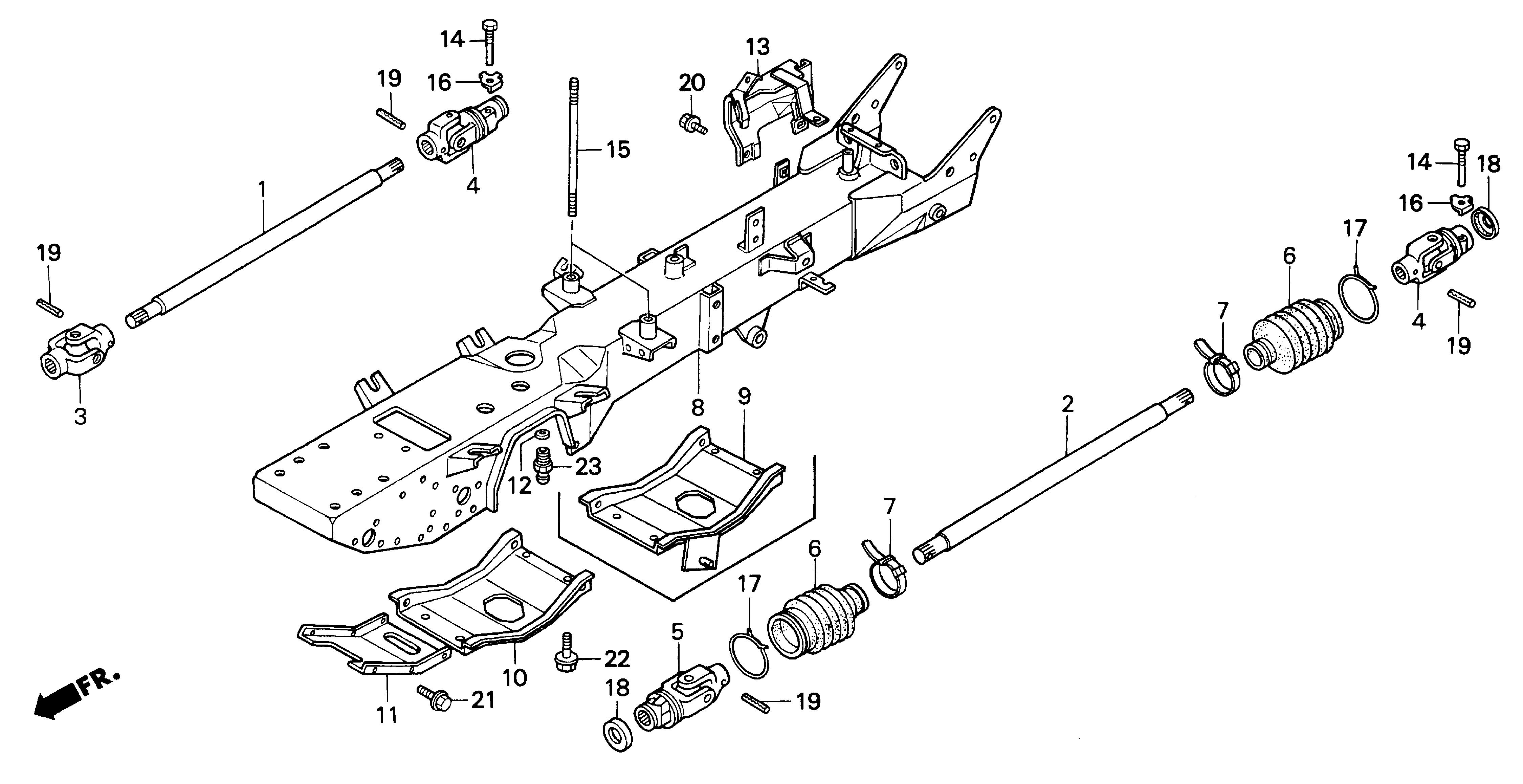

Multi Purpose Tractor RT RT5000 RT5000 A FA2A-5000033-9999999 FRAME - Ace Hardware & Garden Center

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
40210-752-000
Description
SHAFT A, PROPELLER
Serial Range
1000001 - 9999999
Qty
Price
$202.44

Ref No
2
Part Number
40220-752-000
Description
SHAFT B, PROPELLER
Serial Range
1000001 - 9999999
Qty
Price
$159.10

Ref No
3
Part Number
42330-752-000
Description
JOINT B, UNIVERSAL
Serial Range
1000001 - 9999999
Qty
Price
$189.40

Ref No
4
Part Number
42360-752-010
Description
JOINT E, UNIVERSAL
Serial Range
1000001 - 9999999
Qty
Price
$202.80

Ref No
5
Part Number
42370-752-010
Description
JOINT F, UNIVERSAL (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$189.24

Ref No
6
Part Number
44315-752-000
Description
BOOT E, JOINT
Serial Range
1000001 - 9999999
Qty
Price
$16.70

Ref No
7
Part Number
44318-SA7-300
Description
BAND, DRIVESHAFT BOOT
Serial Range
1000001 - 9999999
Qty
Price
$17.30

Ref No
8
Part Number
50100-752-630
Description
FRAME
Serial Range
1000001 - 5002722
Qty
Price
$2,795.36

Ref No
8
Part Number
50100-752-631
Description
FRAME
Serial Range
5002723 - 9999999
Qty
Price
$2,151.28

Ref No
10
Part Number
50221-752-630
Description
COVER A, FRAME (LOWER) (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
11
Part Number
50222-752-630
Description
COVER B, FRAME (LOWER)
Serial Range
1000001 - 9999999
Qty
Price
$48.02

Ref No
13
Part Number
66111-752-000
Description
COVER, RR. PROPELLER SHAFT
Serial Range
1100330 - 9999999
Qty
Price
$61.36

Ref No
14
Part Number
90102-752-000
Description
BOLT, SPECIAL (8MM)
Serial Range
1000001 - 9999999
Qty
Price
$3.36

Ref No
15
Part Number
90121-752-000
Description
BOLT, STUD (10X144)
Serial Range
1000001 - 9999999
Qty
Price
$12.04

Ref No
16
Part Number
90502-752-000
Description
WASHER, LOCK (8MM)
Serial Range
1000001 - 9999999
Qty
Price
$2.22

Ref No
17
Part Number
90602-752-003
Description
CLIP (55.6)
Serial Range
1000001 - 9999999
Qty
Price
$6.12

Ref No
18
Part Number
90872-752-005
Description
SEAL, SPLINE
Serial Range
1000001 - 9999999
Qty
Price
$8.48

Ref No
19
Part Number
94305-60323
Description
PIN, SPRING (6X32)
Serial Range
1000001 - 9999999
Qty
Price
$1.98

Ref No
20
Part Number
95701-06012-08
Description
BOLT, FLANGE (6X12)
Serial Range
1000001 - 9999999
Qty
Price
$1.72

Ref No
21
Part Number
95701-08016-08
Description
BOLT, FLANGE (8X16)
Serial Range
1000001 - 9999999
Qty
Price
$1.74

Ref No
22
Part Number
95701-10020-08
Description
BOLT, FLANGE (10X20)
Serial Range
1000001 - 9999999
Qty
Price
$2.20
